Telemetry Systems

Communications standards like IEEE 802.15.4 and GSM/GPRS can in combination with Ethernet and the Internet cover nearly all conceivable application of remote sensing.

With the software and hardware designed by BeanAir, they have made Ultra-Low Power WSN possible. BeanAir have introduced the concept of self-powered devices that can be easily integrated with the available industrial sensors.

BeanAir® offers a wide range of products varying from Wireless Data Acquisition System to Smart Wireless Sensors. BeanAir® technology allows you to connect to your IT system by offering various solutions (Ethernet & GSM/GPRS & OPC DA Server). You can build your own architecture of Wireless Sensor Networks.

IEEE 802.15.4

BeanAir is using a standard Wireless Sensor Network stack (IEEE 802.15.4). They designed a Wireless Network which can easily be interoperable with your existing IT environment.

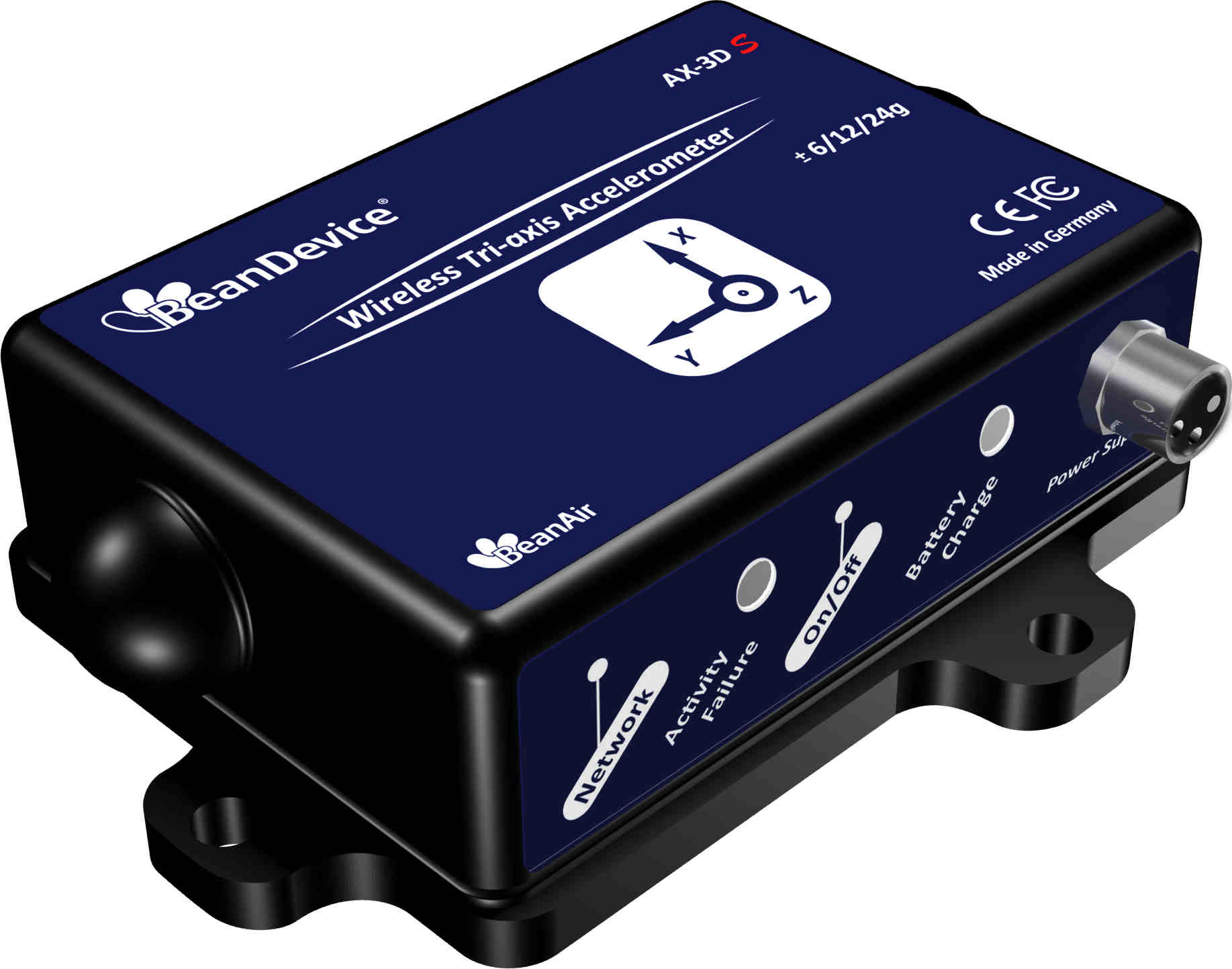

Sensors

The wireless sensors are based on the ultra low power IEEE 802.15.4 standard for medium range communication.

The data rate is approximately 250kb/s which enables streamed data up to 3kS/s for certain devices. Each sensor can store up to 1 million samples internally, with event dating.

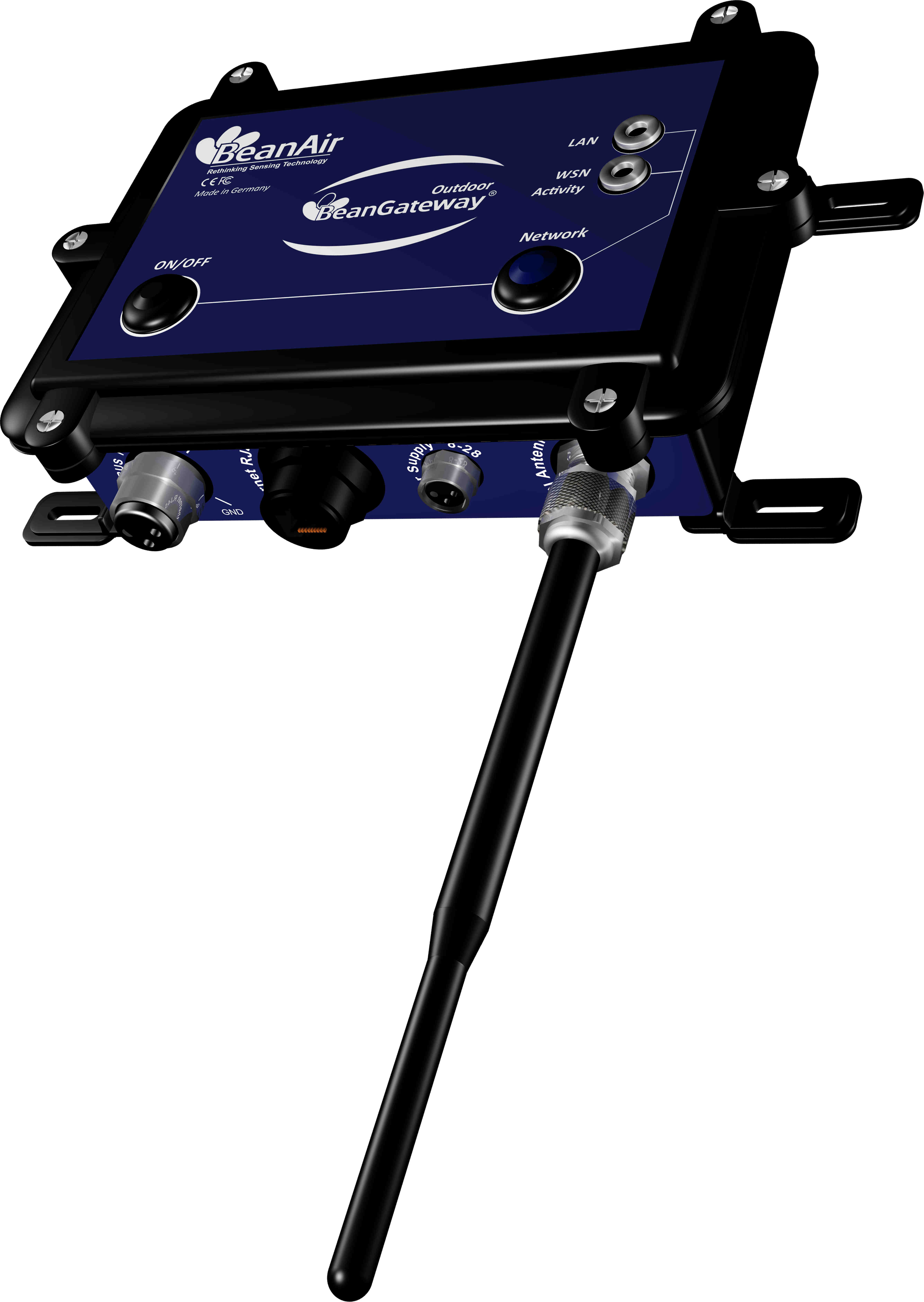

Gateways

A single transmission link can cover up to 1000 meters depending on the conditions and device used.

For off site communication we have gateways that can route a mesh of sensors via GSM/GPRS or Ethernet to distant locations.

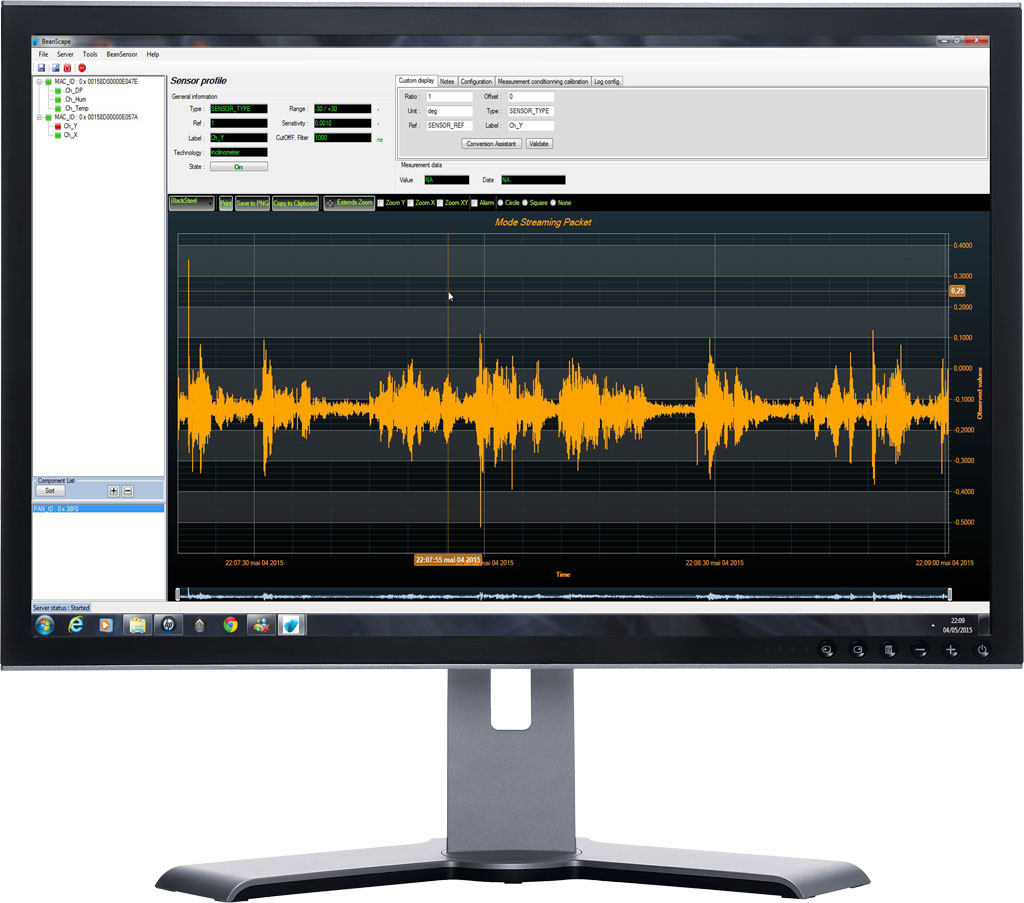

Software

BeanScape is a dedicated software for controlling and monitoring the sensor networks. It has a client/server architecture that allows multiple networks to be controlled from one location.

It also implements a .NET OPC server for distribution of data in a standardised and cost effective way.
