DY 4400A

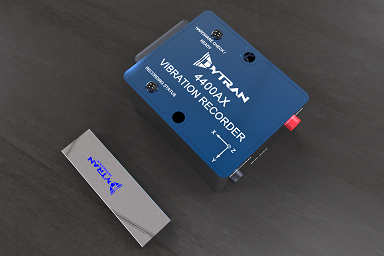

VibraCorder 4400A Series: Triaxial Vibration Recorder



VibraCorder™ goes anywhere and everywhere to capture critical vibration data, solve problems, and move product development forward. Compact, lightweight, battery operated, environmentally sealed package fits into tight spaces. Easily installed, user-configurable software optimizes data collection; internal accelerometer eliminates the need for external cable runs and complex signal conditioning. Removable memory card plugs directly into your laptop or PC. Built in high-pull magnets for easy mounting to ferromagnetic surfaces.

Applications for the VibraCorder™ Include:

  • Automotive
  • Vibration testing
  • Remote vibration measurement
  • Rotating machine diagnostics
  • Impact testing
  • Ride & Handling
  • Sports
  • Safety Equipment
  • Playground testing
  • Motorcycles
  • Development of ATVs
  • Suspension testing
  • Powersports
  • Bicycles



VibraCorder Device Features:

  • VibraCorder™ Includes: Model 4400A vibration recorder, SDHC 8GB memory card and USB drive containing the software
  • Multiple recording regimes: Free run, triggered event, triggered free run, auto stop, etc.
  • Several sampling rates available up to 3200 samples/second
  • Environmentally sealed with IP64 rating
  • Magnet mount or screw mount
  • Battery operated (9V)
  • Up to 24 hours of recording time
  • Low battery indicator with emergency file save feature
  • Available in two ranges: +/-16 g and +/- 200 g



VibraCorder™ Software Features:

  • Immediate retrieval of the recorded data from the SDHC card
  • Data selection and zoom
  • Automatic cursor location
  • Data overlay
  • Event comparison
  • High pass/Low pass filtering
  • Oversampling
  • FFT analysis
  • Time Synchronous Averaging
  • Data export to multiple formats
Weight, Max.160 g
Acceleration Range±157 m/s^2 peak
Maximum Frequency Range, -3dB0 to 1000 Hz
Resonance Frequency>5.5 kHz
Recording Time, Max.24 hours
Operating Temperature-40 to +85 °C
Shock Max9810 m/s^2
SealEnvironmental / IP64
