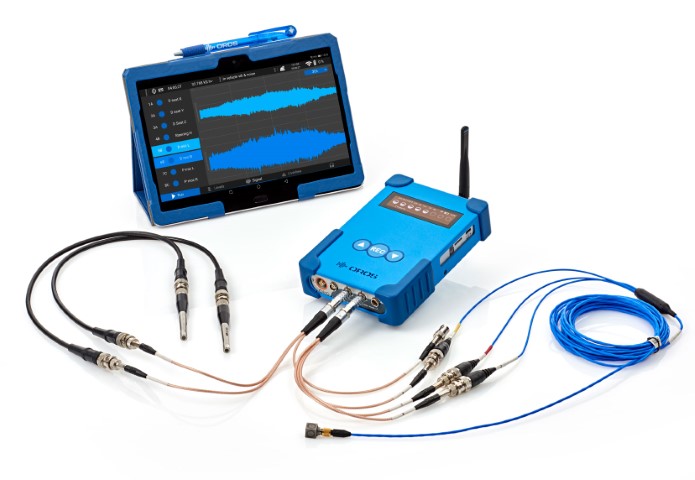

8 channels Mobile DAQ System
OR10 is the MoDS (Mobile Data acquisition System) hardware. MoDS is made of OR10 plus two software modules:
- OR10, a 4 to 8 channel mobile DAQ for data acquisition, the size of a paperback, from the OROS high-end metrology range
- NVGo, the Android App for acquisition setup, and for monitoring of signals and results
- NVGate, the OROS sotware platform for online analysis and post-analysis, using OR10 as a front-end.
| Parameter | Value |
| Dynamic channels | 4 to 8, AC / DC / IEPE |
| Tachometers | 2 triggers / tachometer |
| Outputs | Headphones, replay of recordings |
| Bandwidth | 40 kHz |
| Input Range | ± 40 V Inputs, 24 bits |
| Storage | Removable uSD up to 64 Gbyte |
| Power Supply | USB-C power supply, internal battery 5h |
